SPM接线端子系列是拉斯维加斯官网光为客户提供的高靠得住性AC/DC接线式电源？。该系列电源拥有全球输入电压领域、交直流两用、低功耗、高效能、高靠得住性、安全隔离蹬着点。产品安全靠得住，抗浪涌机能优越，EMC及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL60950 、EN60950等尺度。
发展查看更多
？樾偷缭
超薄型ZP系列幼型化ZPR系列国产化AES系列百搭型DP系列高靠得住HP系列工频变压器TP系列尺度化SP单路系列尺度化SP多路系列国产化AEP单路系列国产化AEP多路系列接线端子SPM系列接线端子DPM系列宽压SIP型DPA系列宽压DIP型DPB系列宽压输入1X1型DEM系列宽压输入2X1型DGM系列宽压输入2X1.6型DIM系列定压隔离非稳压系列定压隔离稳压系列非隔离K系列
产品中心
接线端子SPM系列
点击发展前提搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效能% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/道理图库) | 认证/尺度 | 技术手册 | 样品申请 |
SPM30-SXX SPM30-SXX | 30 | 85-305 | 100-430 | 12-50 | 0.6-2.5 | 82-86 | 2500 | 98.0*52.0*22.0 | -- -- | -- |  -- |  -- |
| SPM30-S12 | 30 | 85-305 | 100-430 | 12 | 2.5 | 82 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S24 | 30 | 85-305 | 100-430 | 24 | 1.25 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |

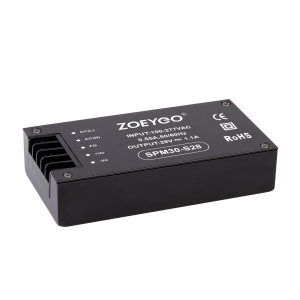

| SPM30-S28 | 30 | 85-305 | 100-430 | 28 | 1.1 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S48 | 30 | 85-305 | 100-430 | 48 | 0.62 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S50 | 30 | 85-305 | 100-430 | 50 | 0.6 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
SPM50-SXX SPM50-SXX | 50 | 85-305 | 100-430 | 12-50 | 1.0-4 | 82-86 | 2500 | 98.0*52.0*22.0 | -- -- | -- | -- | -- |
| SPM50-S12 | 48 | 85-305 | 100-430 | 12 | 4 | 82 | 2500 | 98.0*52.0*22.0 | -- | | | |

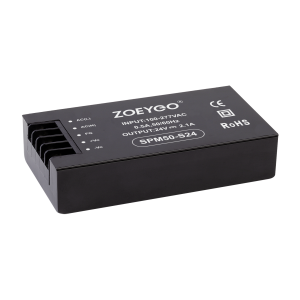

| SPM50-S24 | 50 | 85-305 | 100-430 | 24 | 2.1 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM50-S48 | 50 | 85-305 | 100-430 | 48 | 1.05 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM50-S50 | 50 | 85-305 | 100-430 | 50 | 1 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
SPM100-SXX SPM100-SXX | 100 | 90-264 | 100-370 | 12-48 | 2.1-8.3 | 85-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPM100-S12 | 96 | 90-264 | 100-370 | 12 | 8.3 | 85 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM100-S15 | 100 | 90-264 | 100-370 | 15 | 6.6 | 86 | 3000 | 139.0*88.0*30.0 | -- | | | |

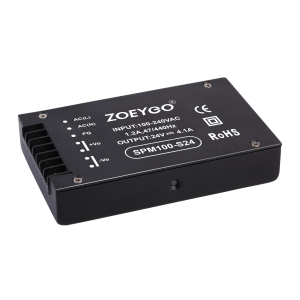

| SPM100-S24 | 100 | 90-264 | 100-370 | 24 | 4.1 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM100-S48 | 100 | 90-264 | 100-370 | 48 | 2.1 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
SPM150-SXX SPM150-SXX | 150 | 90-264 | 100-370 | 12-48 | 3.15-12 | 87-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |

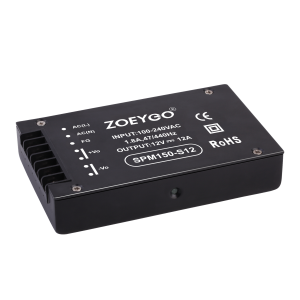

| SPM150-S12 | 144 | 90-264 | 100-370 | 12 | 12 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S15 | 150 | 90-264 | 100-370 | 15 | 10 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S24 | 150 | 90-264 | 100-370 | 24 | 6.25 | 88 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S48 | 150 | 90-264 | 100-370 | 48 | 3.15 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
SPMC100-SXX SPMC100-SXX | 100 | 90-264 | 100-370 | 12-48 | 2.1-8.3 | 85-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC100-S12 | 96 | 90-264 | 100-370 | 12 | 8.3 | 85 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC100-S15 | 100 | 90-264 | 100-370 | 15 | 6.6 | 86 | 3000 | 139.0*88.0*30.0 | -- | | | |

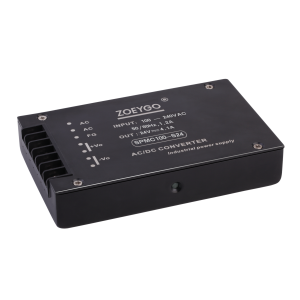

| SPMC100-S24 | 100 | 90-264 | 100-370 | 24 | 4.1 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC100-S48 | 100 | 90-264 | 100-370 | 48 | 2.1 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
SPMC150-SXX SPMC150-SXX | 150 | 90-264 | 100-370 | 12-48 | 3.15-12 | 87-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC150-S12 | 144 | 90-264 | 100-370 | 12 | 12 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC150-S15 | 150 | 90-264 | 100-370 | 15 | 10 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |

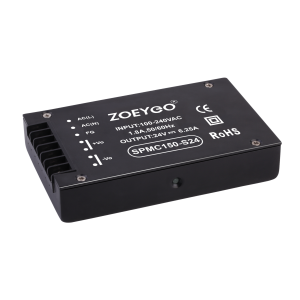

| SPMC150-S24 | 150 | 90-264 | 100-370 | 24 | 6.25 | 88 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC150-S48 | 150 | 90-264 | 100-370 | 48 | 3.15 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
SPMC300-SXX SPMC300-SXX | 300 | 90-264 | 100-370 | 15-48 | 6.25-20 | 89-91 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC300-S15 | 300 | 90-264 | 100-370 | 15 | 20 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |

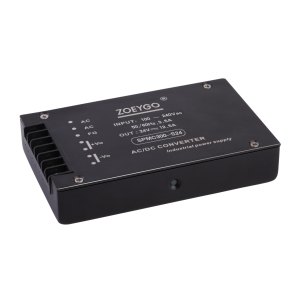

| SPMC300-S24 | 300 | 90-264 | 100-370 | 24 | 12.5 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC300-S36 | 300 | 90-264 | 100-370 | 36 | 8.3 | 90 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC300-S48 | 300 | 90-264 | 100-370 | 48 | 6.25 | 91 | 3000 | 139.0*88.0*30.0 | -- | | |
